The winners from Wagenborg Nedlift

This ESTA Award in the category SPMT crowns a project of enormous proportions. In the truest sense of the word, as two huge steel storage tanks (bullets) were transported through the Limburg village of Urmond to the Chemelot site in Geleen. The giants were 53 metres long, 8 metres wide, 8.5 metres high and weighed 460 tonnes each.

The transport experts at Wagenborg Nedlift managed to transport the bullets from the quay in Urmond to the Chemelot industrial complex in Geleen on a dolly combination of 2 x 20 axle line SPMTs. A distance of only 3 kilometres, but right across the A2, the busiest motorway in the Netherlands.

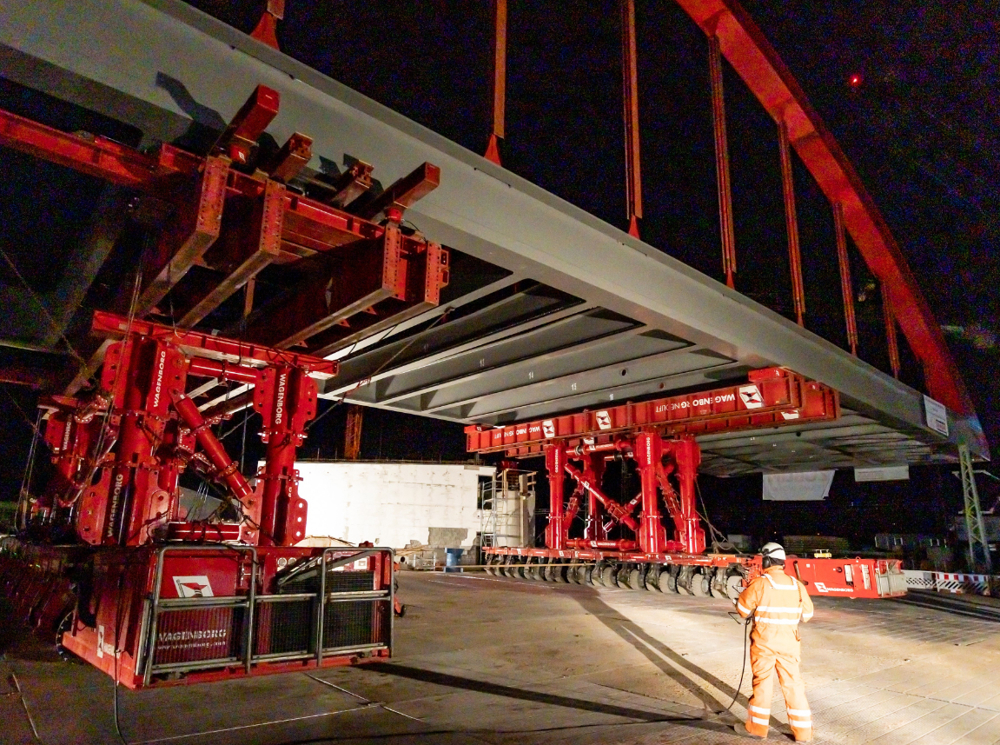

A new arch bridge, weighing over 660 tons and nicknamed the 'Colossus of Köthen' connects the inner city of Köthen with important arterial roads.

The engineers of Wagenborg Engineering devised an ingenious method to place this bridge over seven(!) railway tracks during a short weekend shutdown. The SPMTs played the leading part, but other equipment was also used, including a 600 tonne crawler crane, various jacking systems and the sliding system developed by Wagenborg Nedlift itself.

A dashing exploit in heavy transport which was rewarded with an ESTA Award in the category SPMT jobs!

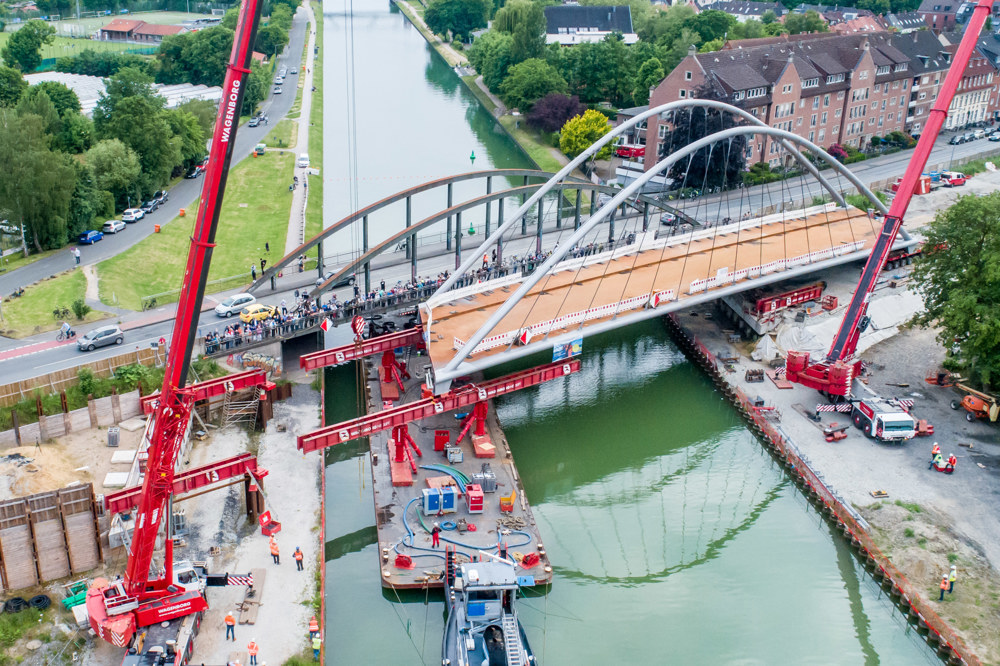

Placing the new Wolbeckerstrasse bridge in the German city of Münster was a technical challenge of stature for the engineers of Wagenborg Engineering. How do you make sure that the sliding system on the pontoon exactly connects with the sliding system on the abutment on the other side?

A special combination of horizontal and vertical transport technology on land and water, worked out in detail by the engineers, was needed to get the job done. The chosen solution appeared to be the winner of an ESTA Award in the Combined Techniques category!

The construction of the new suspension bridge "Ludwig-Volk-Steg" over the Main river near Würzburg proved to be a challenge in itself. Heavy lifting equipment was required to hoist the 11-tonne prefabricated parts. But there was no room for such heavy lifting equipment on the river banks.

The lifting specialists of Wagenborg Nedlift came up with a solution to lift the bridgeparts from the water. The use of the strong and manoeuvrable 165 tm knuckle boom telescopic crane positioned on a large barge proved to be a solid and safe solution for the lifting of the prefabricated parts and resulted in an ESTA Award in the category up to 120 tons lifting capacity.

The ‘Small but powerful does it, for a great result’ project won the award in the category up to 120-tonne lifting capacity. This project involved the use of two mini-cranes to place a 10-tonne filter press on a platform in a process building.

A precision job with very limited lifting height and a very small installation space for the cranes, which required well-thought-out preparation by the project team and outstanding skill on the part of the mini-crane operators.

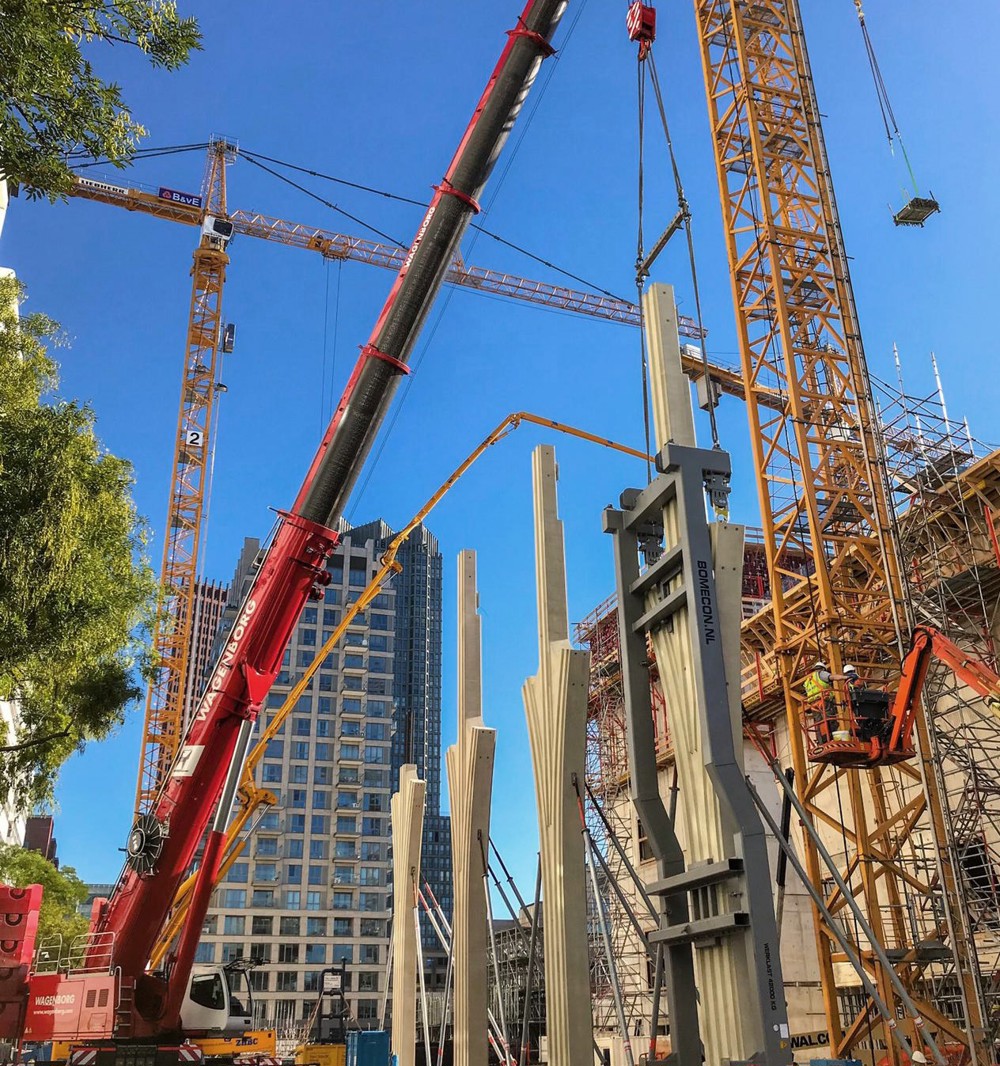

A building with a design as unusual as that of Amare in The Hague demands special lifting solutions. To install no fewer than 50 special iconic columns, in the shape of a tuning fork, Wagenborg Nedlift developed a special lifting frame in cooperation with Bomecon Construction Equipment, enabling them to place the columns (varying in size and weight) entirely in accordance with the requirements. Wagenborg Nedlift received the ESTA Award in the category Innovation & Development for the development of this special frame.

Wagenborg Nedlift has also developed tailored solutions for the placement of façade elements for the next phases of this unique project. Read the full story!

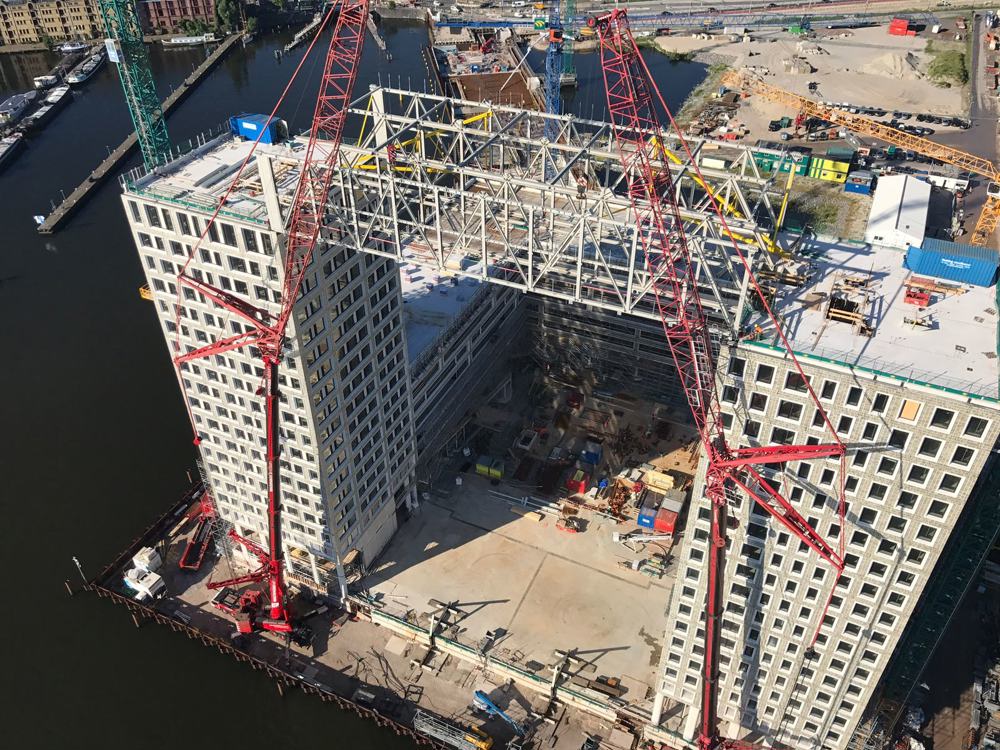

For the prestigious Pontsteiger project in Amsterdam, the lifting specialists from Wagenborg Nedlift placed four huge trusses.

A daring piece of lifting work, as the cranes were set up in a very tight location and the tandem lift with the trusses weighing 78 tonnes required extreme precision. The hoisting operation of the trusses for Pontsteiger was rewarded with an ESTA Award in the 'Hoisting > 120 tonnes’ category. Read the full story!

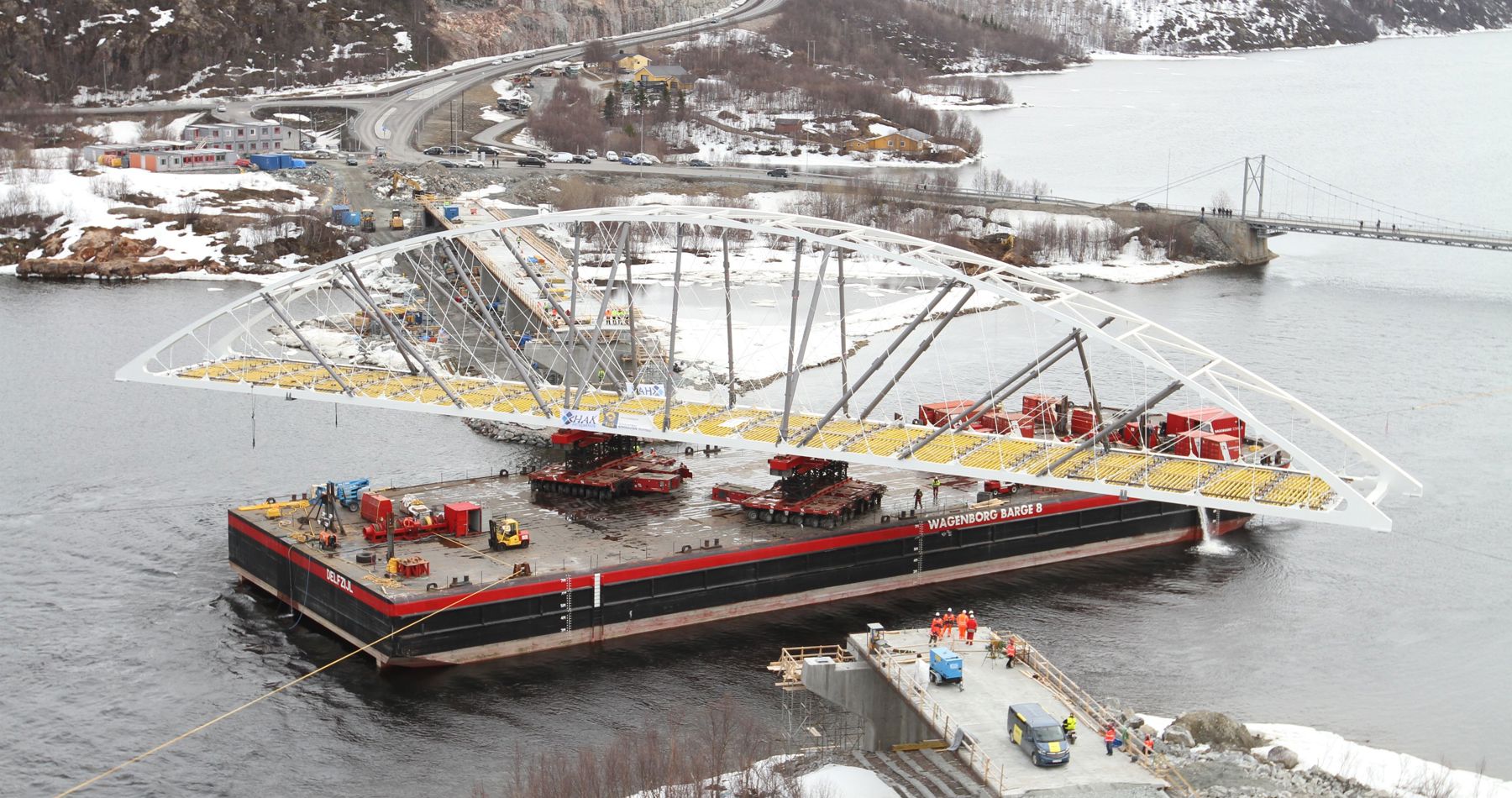

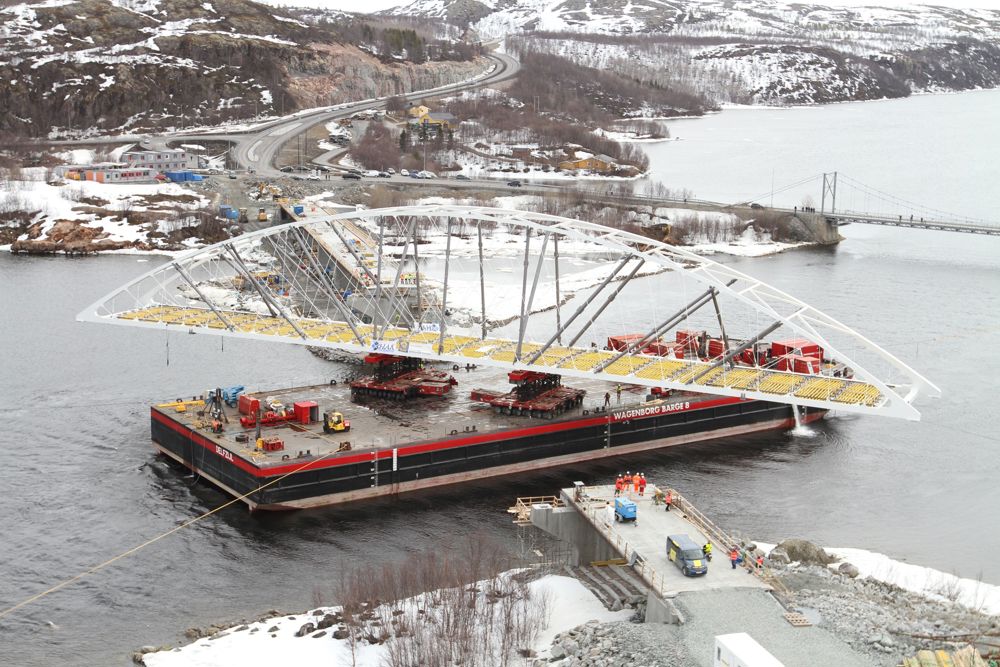

In the far north of Norway, very close to the border with Russia, Wagenborg Nedlift installed a 120-metre-long arched bridge over the Bøkfjord, weighing 760 tonnes.

The team made optimal use of the natural circumstances in the fjord, as well as the technical possibilities offered by the sailing and driving equipment. In addition to compliments from the client, it resulted in an ESTA Award in the SPMT jobs category.

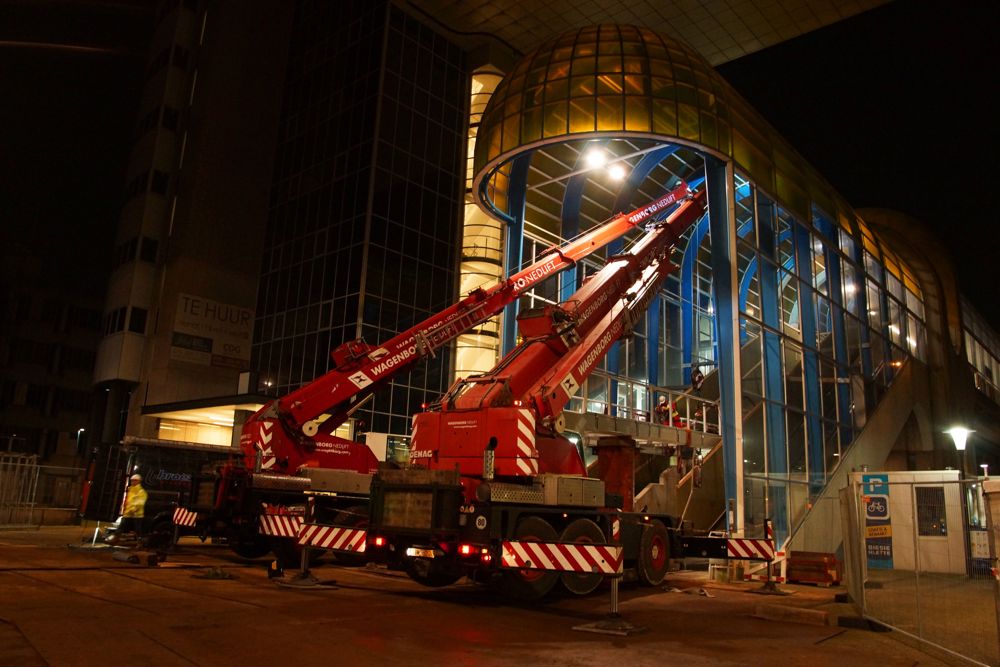

The 180-metre-long Nelson Mandela Bridge in Zoetermeer needed a new footbridge and a new lift. An extremely complex job!

Despite the extremely tight location, the Wagenborg team succeeded, in close consultation with the client, in developing an excellent operating method. The method was perfectly executed and rewarded with an ESTA Award in the 'Cranes up to 120 tonnes' category. Read more here!

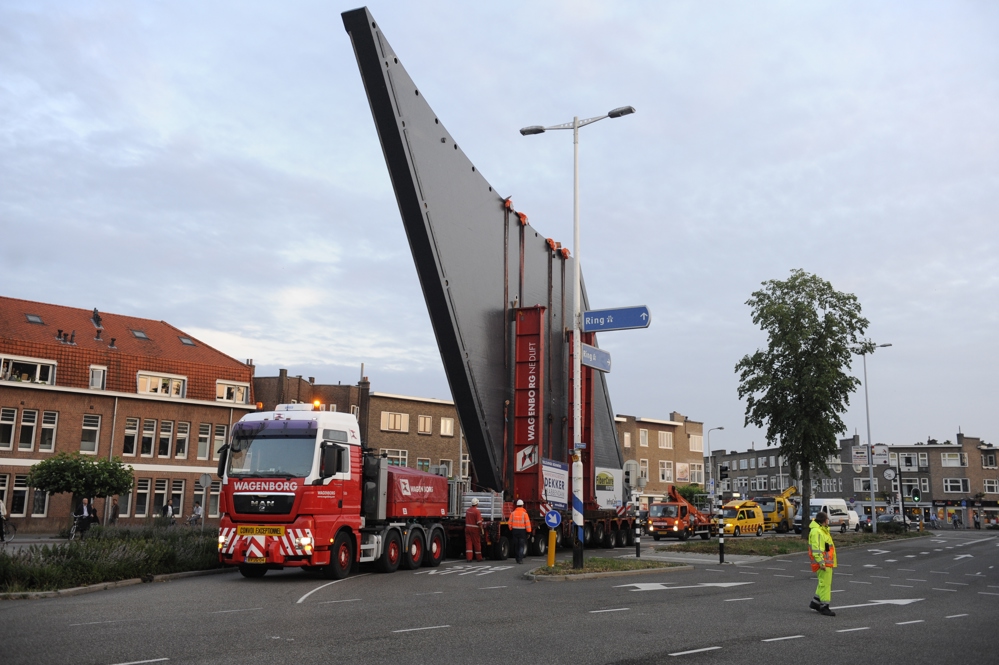

In the summer of 2015, Wagenborg transported the special bridge deck of the Kruisvaart Bridge in Utrecht. But how do you transport a 45-tonne composite bridge deck measuring 14 x 23 metres through the centre of Utrecht?

Because of the many obstacles and trees, the Wagenborg engineers developed a perfect solution: a specially tailored support construction to transport the bridge in a vertical position. A sustainable transport solution, sparing many trees. The project earned an ESTA Award in the 'Transport over 120 tonnes' category. Read the full story!

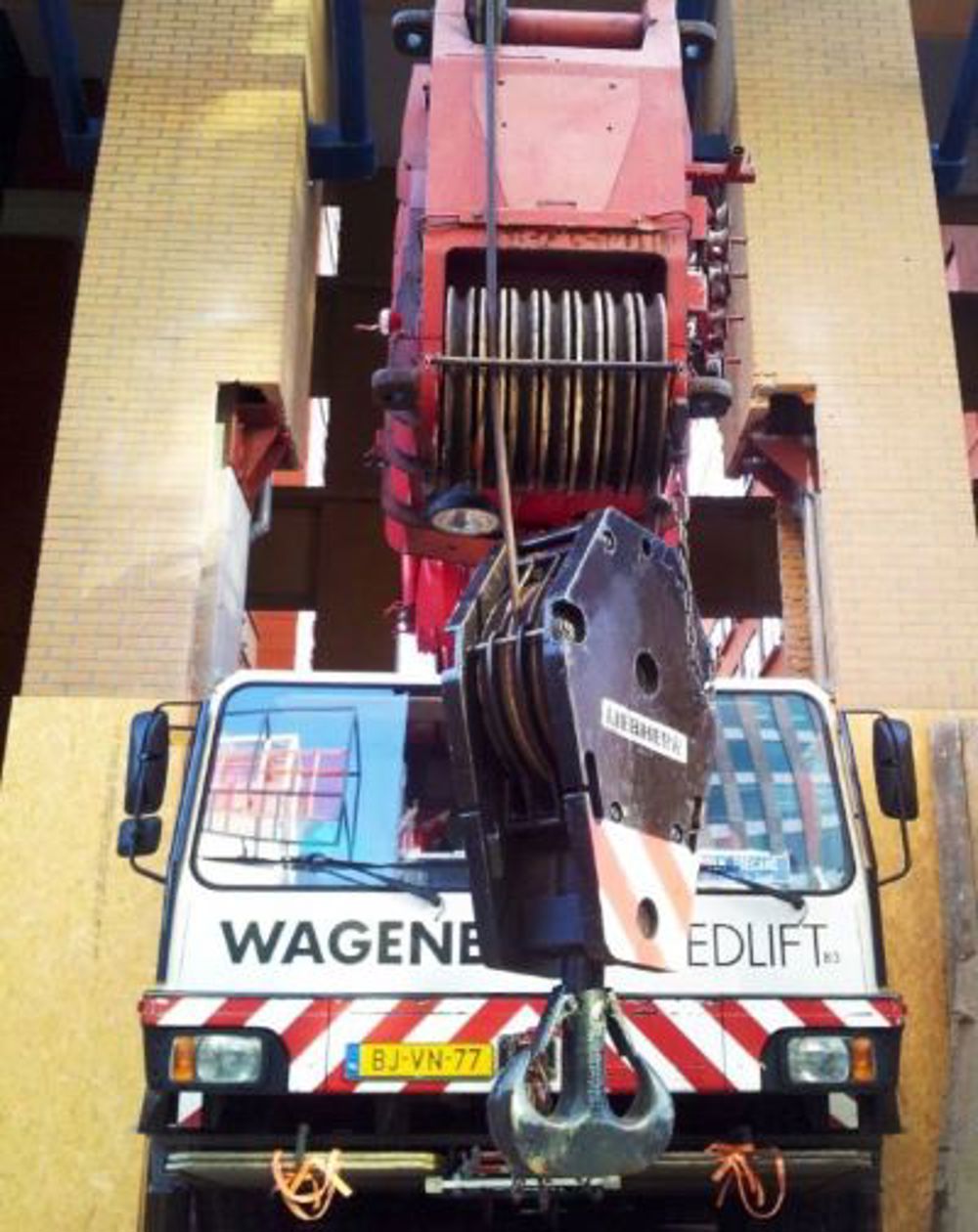

To carry out work on the roof of a building in The Hague, a 120-tonne mobile crane had to be set up in the courtyard. But how do you get a 120-tonne mobile crane into a courtyard when the crane is 3 metres wide and the gate is only 2.75 metres wide?

By combining civil engineering and smart engineering with extraordinary steering skills on the part of the crane operator, Wagenborg Nedlift developed the perfect lifting solution, which earned an ESTA Award in the 'Lifting < 120 tonnes' category.

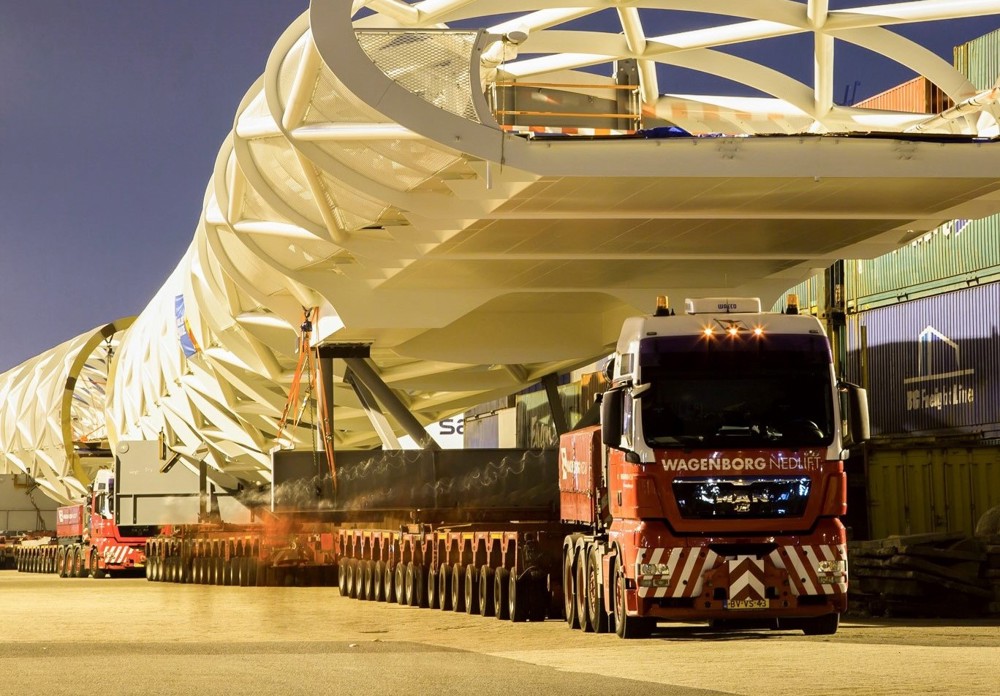

The Green Link Bridge is nearly 200 metres long, weighs over 600 tonnes and spans the Betuwe railway line and the A15 motorway. Given the bridge’s unique design, the task of transporting it to the project site on the A15 presented a special challenge. Several overpasses had to be crossed and almost all street furniture had to be removed, including traffic gantries above the A15.

Several transport configurations were conceived, calculated and compared until, in the end, a solution with conventional axle lines proved to be the most feasible. A great achievement in heavy transport, which was rewarded with an ESTA Award in the category 'Hoisting > 120 tonnes'. Read more here!
